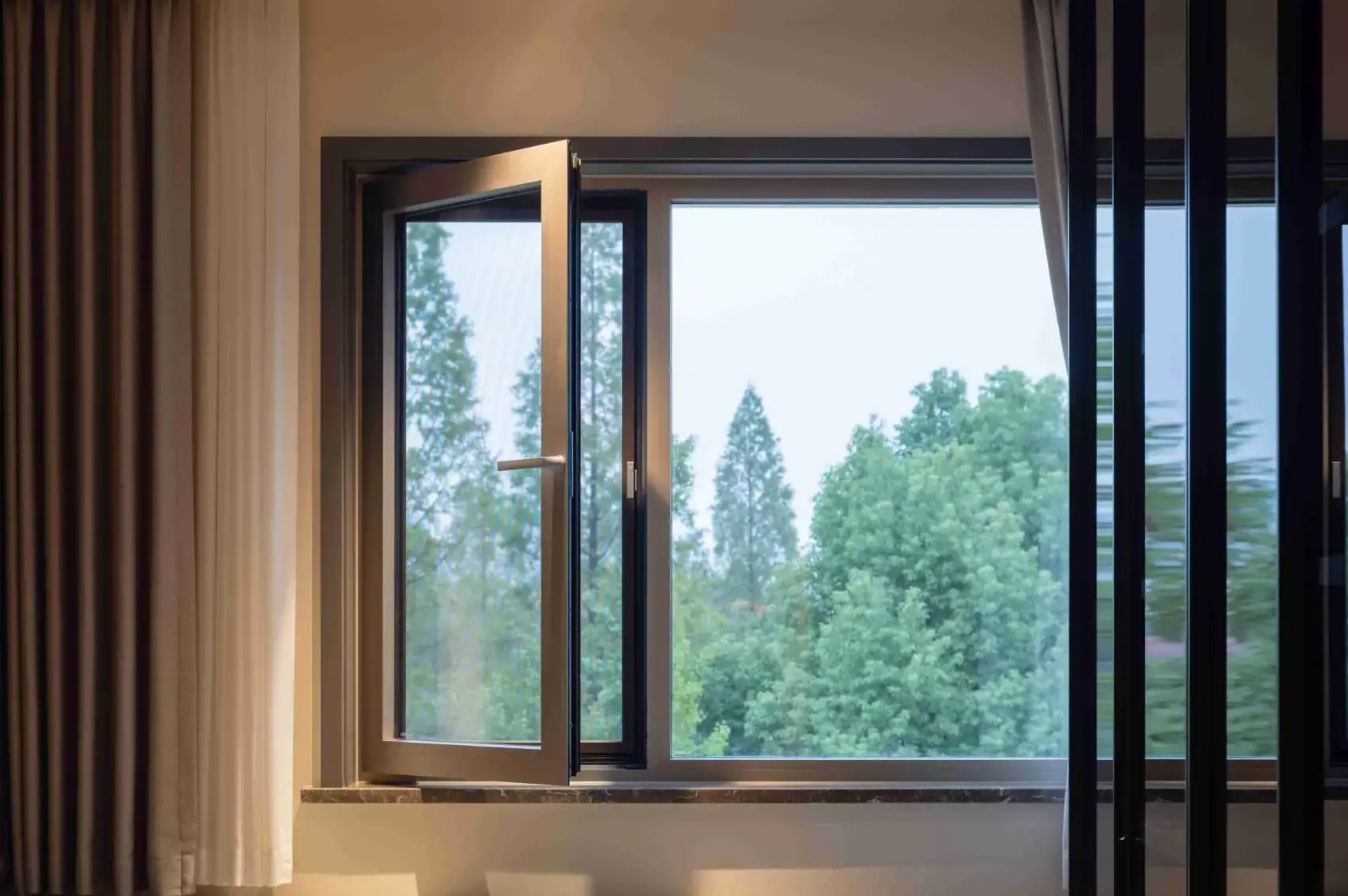

| XWS100IN Window with screen sash | |
| Design | |
| Opening | Inwards opening |
| Opening type | Side-hung, turn/tilt, tilt before turn, tilt, fixed light, double-vent |
| Basic depth(mm) | 98 |
| Vent frame depth(mm) | Glass vent:76, Sash vent:30.2 |
| Face width of frame(mm) | 62 |
| Face width of vent frame(mm) | Sash vent: 25.2 |
| Face width of meeting stile(mm) | No |
| Face width of mullion(mm) | 177 |
| Concealed hinge | Yes |
| Reinforcement mullion | No |
| Surface finish | MED, powder coating |
| Fixed lights | Yes |
| Vent data | |
| Min.-max. vent height(mm),depending on window type | 735-2400 |
| Min.-max. vent width(mm),depending on window type | 400-800 |
| Max. vent weight(Kg) | 170 |
| Min.-max. glass thickness(mm) | Vent: 7-52 |
| Frame: 24-74 | |
| Implement scenario | |
| Façade insert unit | Yes |
| Conservatory insert unit | Yes |
| Parameter | |
| U values in W/(㎡·K) | 1.8 |
| Sound reduction(dB), depending on glazing type | 36 |
| Air permeability(m3/(m.h)) | 0.21 |
| Water tightness(Pa) | 1000 |
| Wind load resistance(KPa) | ≤5 |
