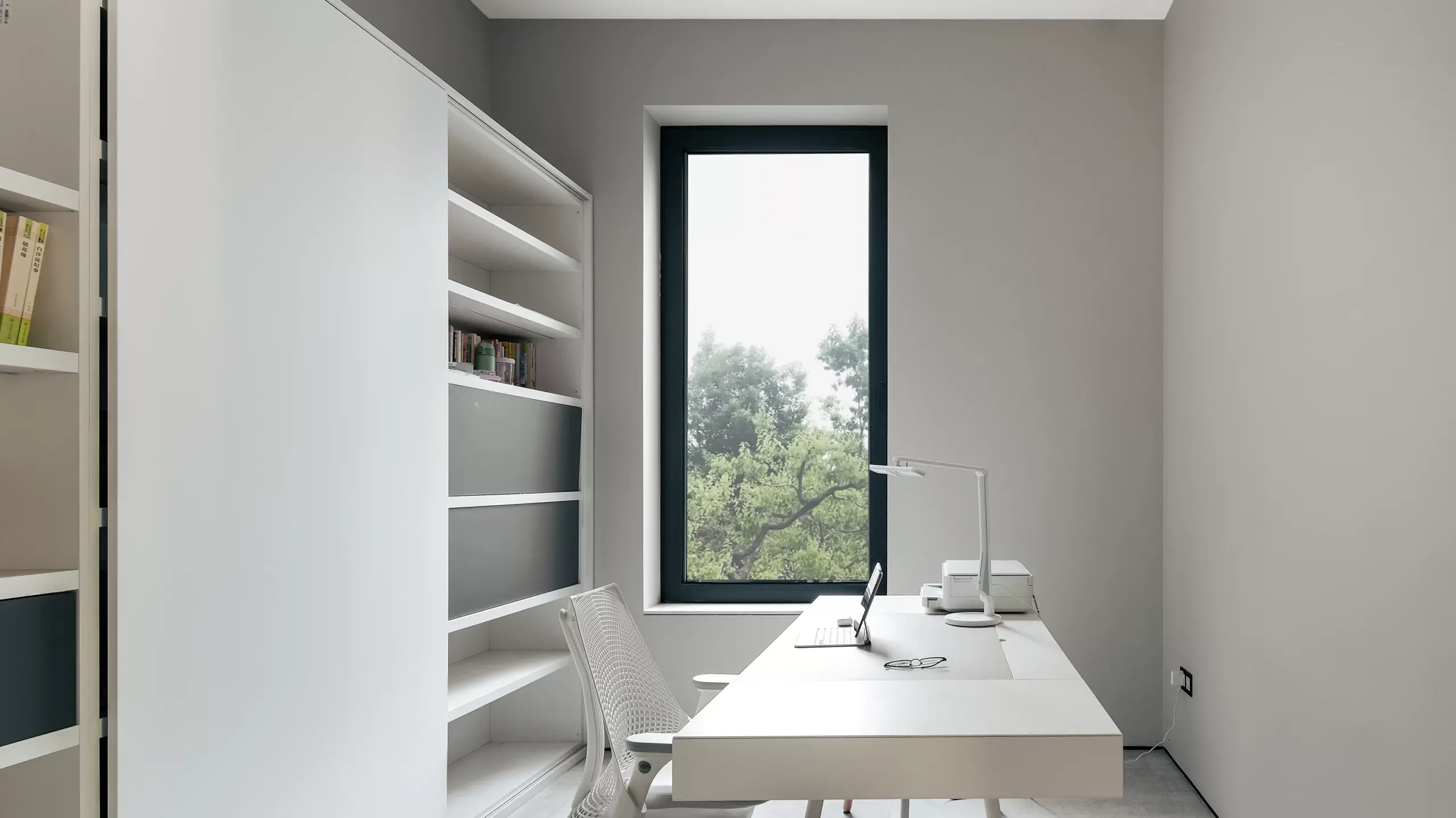

XW98IN Window |
Design |
Opening |
Inwards opening |
Opening type |
Side-hung, turn/tilt |
Basic depth(mm) |
98 |
Vent frame depth(mm) |
108 |
Face width of frame(mm) |
84 |
Face width of vent frame(mm) |
54.5 |
Concealed hinge |
Yes |
Reinforcement mullion |
No |
Surface finish |
MED, powder coating |
Pluggable inwards opening flyscreen sash |
Yes |
Vent data |
Min.-max. vent height(mm),depending on window type |
500-2400 |
Min.-max. vent width(mm),depending on window type |
450-1800 |
Max. vent weight(Kg) |
170 |
Min.-max. glass thickness(mm) |
Vent: 34-84 |
Frame: 24-74 |
Implement scenario |
Façade insert unit |
Yes |
Conservatory insert unit |
Yes |
Parameter |
U values in W/(㎡·K) |
0.78 |
Sound reduction(dB), depending on glazing type |
41 |
Air permeability(m3/(m.h)) |
0.21 |
Water tightness(Pa) |
1000 |
Wind load resistance(KPa) |
≤5 |
