Retro XD85_BC/XD95_BC Door

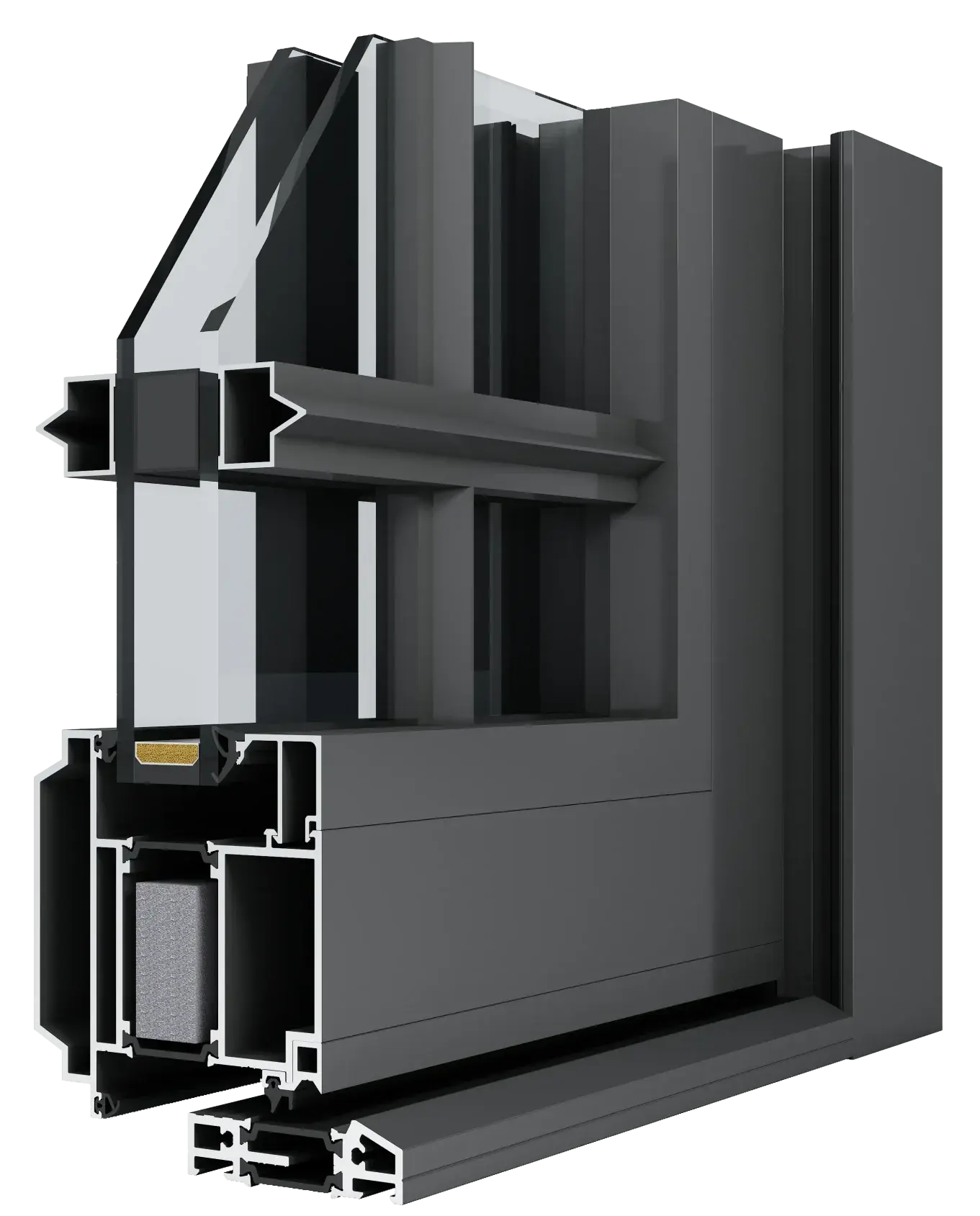

XD95OU_BC

U-value in W/(㎡·K)

2.2

Sound reduction(dB)

35

Water tightness(Pa)

700

Burglar resistance

RC3(Hardware)

RETRO door system: a vintage steel aesthetic with modern comfort

The Retro door system extends the aesthetic language of the Retro window, forming a complete architectural set for projects seeking French vintage charm. Designed with 4 distinct variants, it includes models XD85_BC and XD95_BC, each available in inward or outward opening options, offering flexibility for different spatial requirements.

Derived from the CIVRO XD system, the Retro door inherits all the technical advantages of its predecessor while introducing refined stylistic features. Its defining element is the bevelled contour, which can be combined with matching slope frames and decorative grid bars. These grid bars follow the same production craftsmanship, profiles, and specifications as the Retro window system, ensuring consistency across façades.

The Retro door not only recreates the elegance of classic steel-framed doors but also enhances thermal performance, making it an ideal solution for architects and builders aiming to balance authentic aesthetics with modern comfort and efficiency.

Discover More

A Grand Exchange of Design Between China and Malaysia

Planning Highlight

Beveled outer frame lines create attractive visual accents in both new building and contemporary projects

Decorative grids can be optionally applied to the glass to meet the requirements of various architectural styles

Decorative grids are pre-assembled at the factory according to design specifications. They are fully anchored as a single unit, eliminating the need for on-site assembly and facilitating installation

Slender decorative grids, with a face width of only 27mm and a total depth of only 28mm

Doors are available in single, double, or unequal double leaf configurations, designed for both inward and outward opening

The threshold is as low as 19mm, making passage more convenient

Options for fanlights, side fixed glazing, or openable configurations, compatible with the CIVRO XW window series

A high standard of security: up to RC3

The glazing bead is uniquely designed for indoor-side installation, preventing outdoor prying and simplifying interior side glass installation for enhanced safety

Overview of Retro XD85_BC/XD95_BC Door

Download

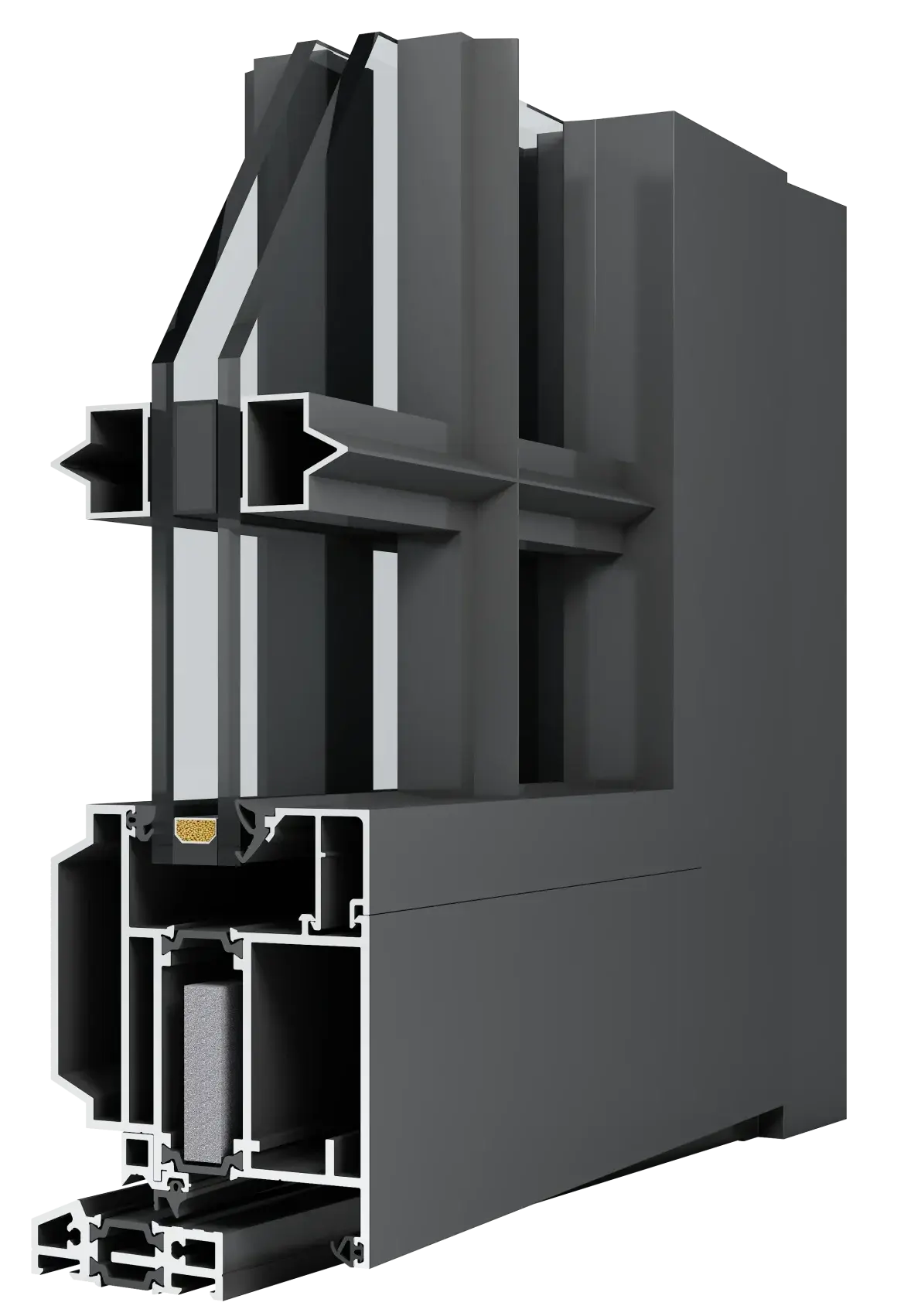

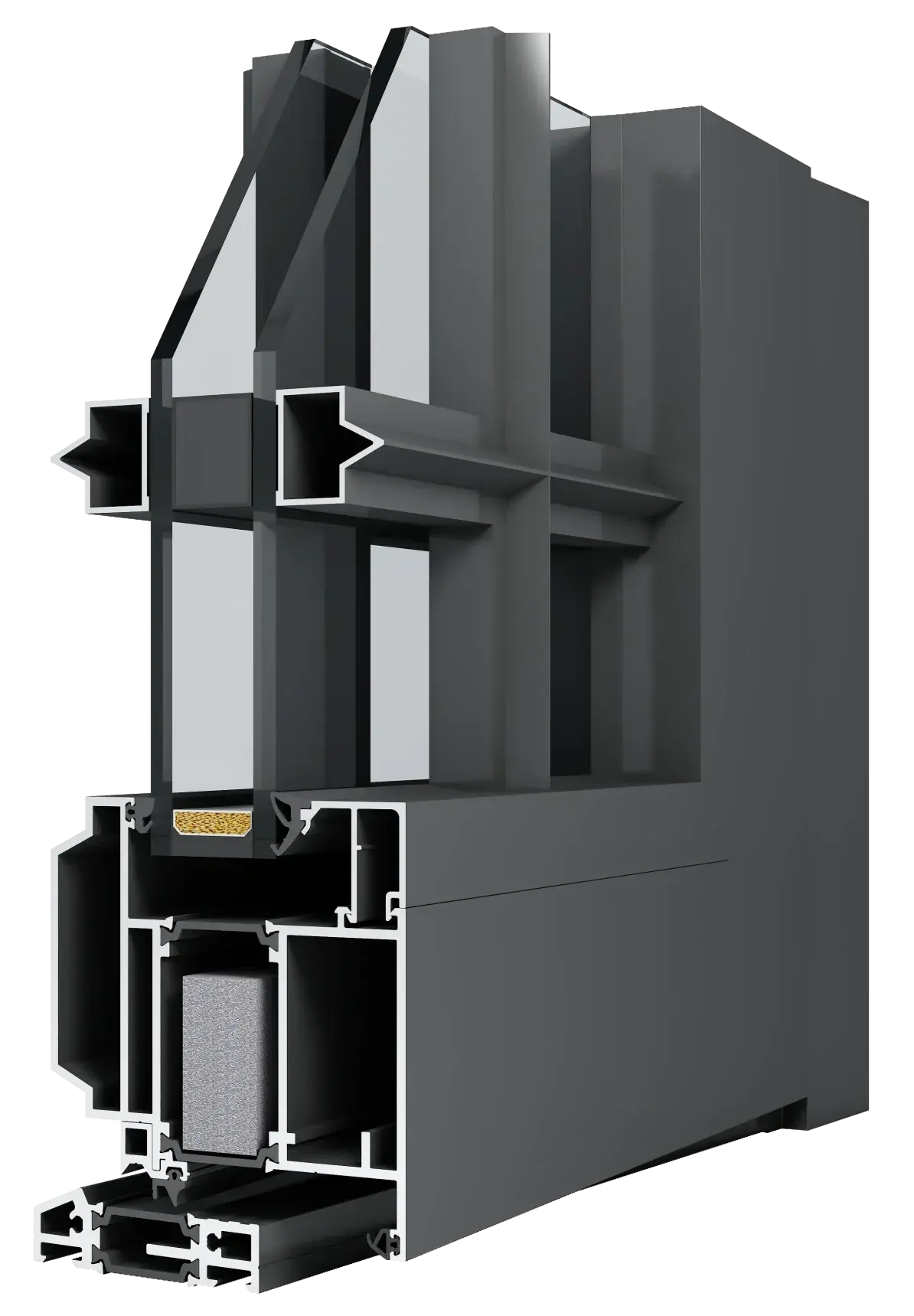

XD85IN_BC XD85OU_BC XD95IN_BC XD95OU_BC
Design
Opening Inwards opening Outwards opening Inwards opening Outwards opening
Opening type Single, double, unequal double leaf Single, double, unequal double leaf Single, double, unequal double leaf Single, double, unequal double leaf
Basic depth(mm) 86 86 96 96
Vent frame depth(mm) 86 86 96 96
Face width of frame, low threshold (mm) 80 53.6 80 53.6
Face width of vent frame, low threshold (mm) 77.6 104 77.6 104
Threshold height(mm) Low threshold: 19 Low threshold: 19 Low threshold: 19 Low threshold: 19
Barrel hinge Yes Yes Yes Yes
Concealed hinge / / / /
T profile / / / /
Meeting stile Yes Yes Yes Yes
Surface finish MED, powder coating MED, powder coating MED, powder coating MED, powder coating
Fixed lights Yes Yes Yes Yes
Leaf data
Min.-max. leaf height(mm),depending on window type 2000-3000 2000-3000 2000-3000 2000-3000
Min.-max. leaf width(mm),depending on window type 700-1200 700-1200 700-1200 700-1200
Max. leaf weight(Kg) 250 250 250 250
Min.-max. glass thickness(mm) 7-29 7-29 7-39 7-39
Implement scenario
Façade insert unit Yes Yes Yes Yes
Conservatory insert unit Yes Yes Yes Yes
Parameter
U values in W/(㎡·K) 2.2 2.2 2.0 2.0
Sound reduction(dB), depending on glazing type 35 35 35 35
Air permeability(m3/(m.h)) 0.5 0.5 0.5 0.5
Water tightness(Pa) 300 700 300 700
Wind load resistance(KPa) ≤5 ≤5 ≤5 ≤5
Burglary resistance RC3 RC3 RC3 RC3

Note

All product catalogs and planning data such as product parameters and performances, detailed drawings, attachment to building structure drawings and DWG files, which you obtain from our website, digital centre, franchisers or other channels and which you can save to your computer, are examples which are intended to help you plan and design your project. These contents must be checked for its suitability in the relevant structural scenario. The technical and legal regulations, the site conditions, and the design and structural requirements, must be assessed and planned independently by the developer and observed by the company contracted to do the work. Data or descriptions in these documents may be modified or amended due to technique improvement or design optimisation. PLEASE BE AWARE OF NECESSITY OF PRE-CHECK TO AVOID ANY MISUNDERSTANDING OR PLANNING LOSE.
