MD65 Door

MD65IN

U-value in W/(㎡·K)

2.2

Sound reduction(dB)

35

Water tightness(Pa)

700

Burglar resistance

N/A

M-Series door system – superior performance, unmatched value

The CIVRO M-Series Door System delivers premium accessibility with an optimal balance of strength, compatibility, and cost efficiency. Featuring a robust 2.0mm wall thickness, it meets the demands of most applications while remaining highly cost-effective. The European-standard groove design ensures seamless integration with a wide range of hardware systems, offering unmatched versatility. Designed to harmonize perfectly with the CIVRO M-Series windows, it enables a sleek and cohesive architectural aesthetic. The high-precision profile engineering enhances assembly tolerance, eliminating fitting issues with hardware, glazing beads, and other components for a flawless finish. With slightly higher precision than national standards, it guarantees superior quality without requiring fabricators to upgrade equipment. Available in multiple colours and opening styles, the M-Series adapts effortlessly to diverse architectural needs - combining rigorous craftsmanship, broad adaptability, and exceptional value in a single high-performance solution.

Discover More

Planning Highlight

Doors are available in single, double, or unequal double leaf configurations, designed for both inward and outward opening

Threshold profiles available in 2 variants: low threshold with 19mm height and high threshold with 68mm height

High-precision profile engineering enhances assembly tolerance, ensuring flawless alignment of hardware, glazing beads, and other components without looseness or fitting issues

Higher-than-national precision standards guarantees superior product quality while allowing fabricators to utilize existing processing equipment without costly upgrades

The glazing bead is uniquely designed for indoor-side installation, preventing outdoor prying and simplifying interior side glass installation for enhanced safety

Overview of MD65 Door

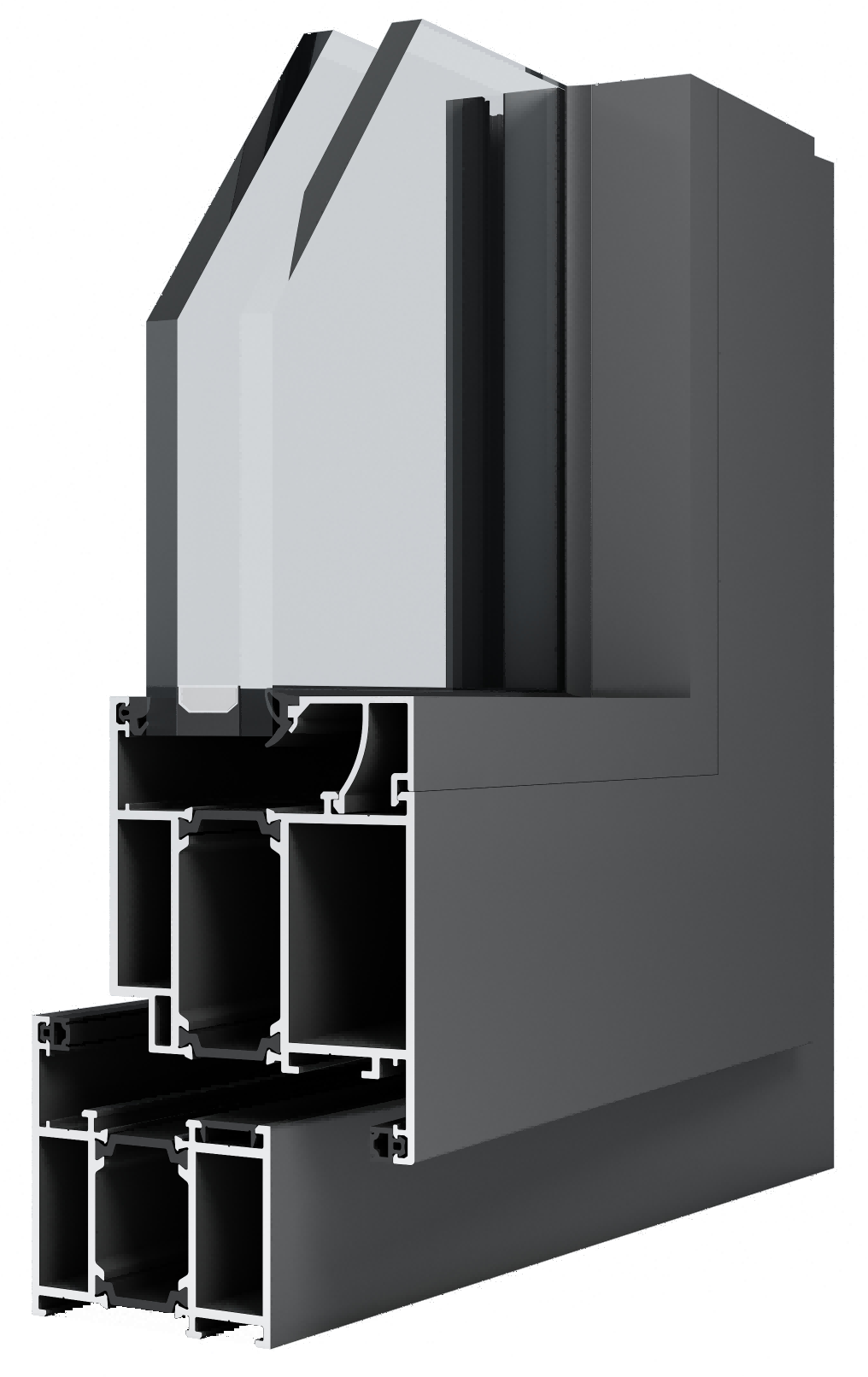

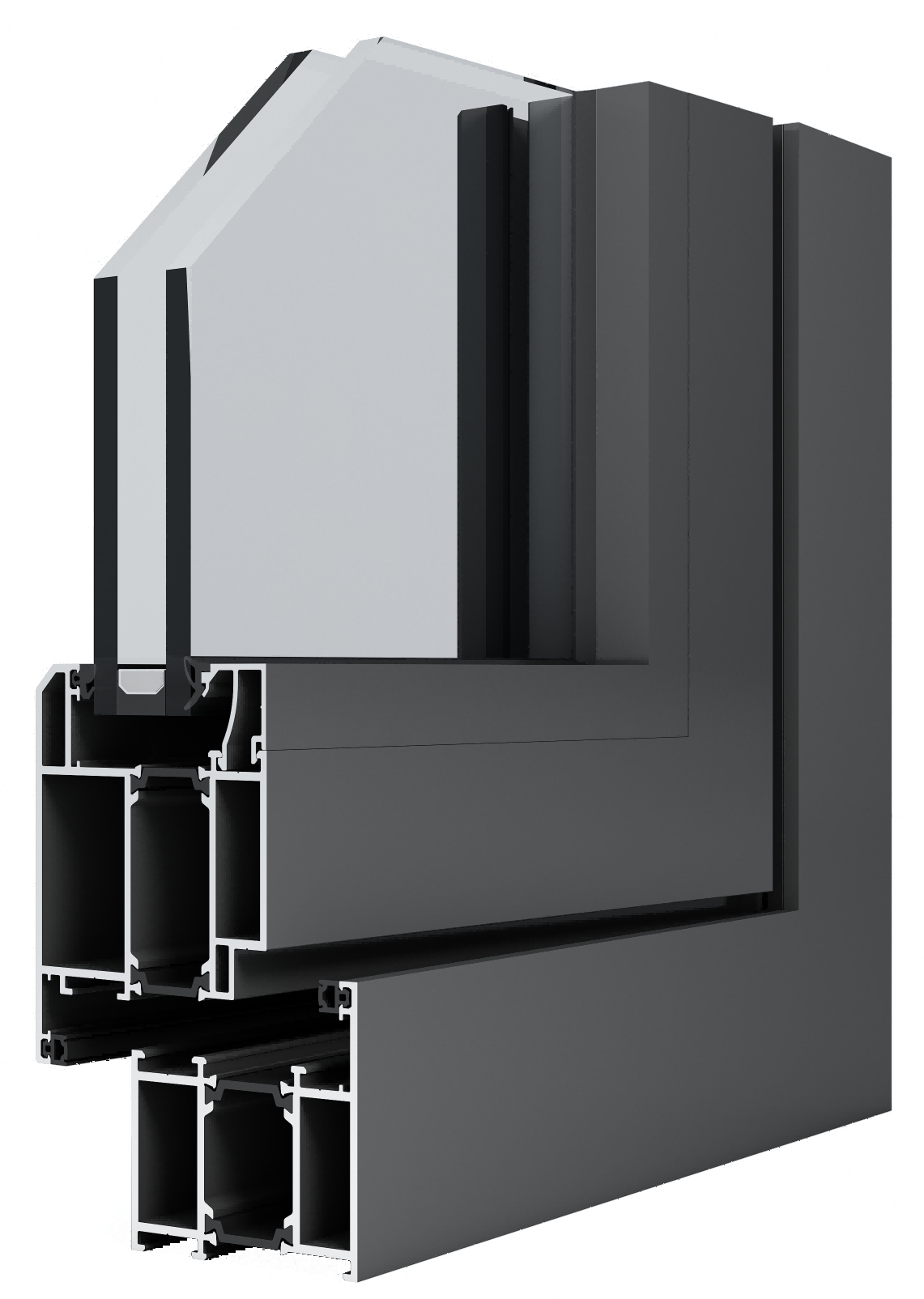

MD65IN MD65OU
Design
Opening Inwards opening Outwards opening
Opening type Single, double, unequal double leaf Single, double, unequal double leaf
Basic depth(mm) 65 65
Vent frame depth(mm) 75 75
Face width of frame, low threshold (mm) 19.5 16
Face width of vent frame, low threshold (mm) 66 98
Face width of frame, high threshold (mm) 68 48
Face width of vent frame, high threshold (mm) 66 98
Threshold height(mm) Low threshold: 19.5 Low threshold: 19.5
High threshold: 68 High threshold: 68
Barrel hinge Yes Yes
Meeting stile Yes Yes
Surface finish MED, powder coating MED, powder coating
Fixed lights Yes Yes
Leaf data
Min.-max. leaf height(mm),depending on window type 2000-2800 2000-2800
Min.-max. leaf width(mm),depending on window type 400-1200 400-1200
Max. leaf weight(Kg) 120 120
Min.-max. glass thickness(mm) 31,32 31,32
Implement scenario
Façade insert unit Yes Yes
Conservatory insert unit Yes Yes
Parameter
U values in W(m2 ·K) 2.2 2.2
Sound reduction(dB), depending on glazing type 35 35
Air permeability(m3/(m.h)) 0.5 0.5
Water tightness(Pa) 300 700
Wind load resistance(KPa) ≤5 ≤5
